Motion Composites HELIO C2 Ultralight Folding Wheelchair C2WC05
Benefits
REACTIVE HANDLING AND EASY TRANSPORTATION
Our vision for the HELIO C2 was significantly reduced weight and greater freedom of movement. Each component was carefully selected and carbon fiber was used for strength and lightness. The result is greater mobility as well as reduced chronic shoulder and joint injuries.
SAVE YOUR ENERGY TO GO FURTHER
The symmetrical cross brace and rigid unibody frame distribute forces equally throughout the frame for superior energy transfer and propulsion. Our unique Ultrarigid Folding system (UFS) maximizes the chair’s overall stability, while the vertical axle plates increase rear wheel stiffness for optimal energy efficiency.
OPTIMAL SEAT-TO-FLOOR HEIGHT
The frame’s innovative design allows you to achieve a super-low 12-inch (30.5-cm) front seat-to-floor height. In addition to easier contact with the floor, this feature provides better foot propulsion. Or, move it beyond 20 inches (50.8 cm) to meet your most challenging needs.
UNCOMPROMISING RELIABILITY
Because carbon fiber is both very strong and very light, it is an ideal material for making wheelchairs. It also has superior fatigue resistance and can withstand extreme temperatures. This ensures exceptional durability, for a chair that will serve you for many years to come.
Features
CARBON SEAT RAIL
Fully molded with integrated seat slider for better seat sling support.
TECHNOLOGIES
T700 HIGH-TENSILE STRENGTH CARBON FIBER
One of the lightest and sturdiest material available, also renowned for its vibration damping properties.

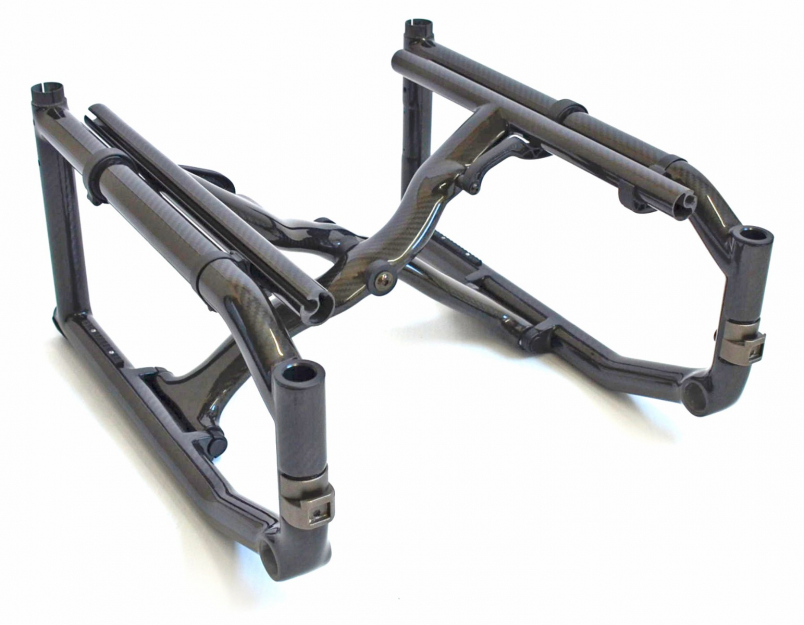

RIGID UNIBODY FRAME
A unibody frame is much stronger and requires less maintenance than a standard two part frame. It also reduces weight while maximizing propulsion efficiency.
SYMMETRICAL MOLDED CROSSBRACE 3D
Entirely symmetrical carbon fiber cross brace for reduced torsion and better energy distribution throughout the frame.

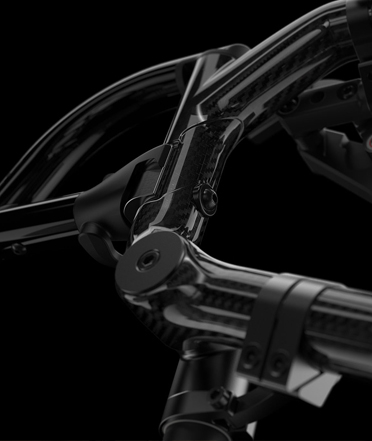

ULTRARIGID FOLDING SYSTEM
High-precision tolerances and oversized pivot axles for best-in-class propulsion efficiency.
FORGED VERTICAL AXLE PLATE
Offers the industry’s most precise rear wheel adjustability. The vertical mounting maximizes stability and responsiveness.
EVOLVE CASTER HOUSING
Integrated into the frame for rock-solid durability, the Evolve caster housing offers easy and precise infinite adjustments.
ANTI-FLUTTER SYSTEM
Minimize flutter with a simple twist of a screw. Provides a smooth, more efficient ride.
NEWTON ACCESSORIES
Parts and accessories designed to be lighter with improved functionality.
Technical Specifications
STRUCTURE
Frame: Folding
Material: High-tensile strength T700 carbon fiber
Transport Weight: 9.5 lb. | 4.3 kg (16 × 16 without rear wheels, wheel locks, armrests, cushion, anti-tippers and footrest). Lightest configuration: 19.4 lb. | 8.8 kg without wheel locks and wheels.
Weight Limit: 265 lb. | 120 kg — 350 lb. | 159 kg - HD Kit
DIMENSIONS
Seat width
Seat depth
14 in. to 20 in.
35.6 cm to 50.8 cm
Front seat to floor
13 in. to 21 ½ in.
33 cm to 54.6 cm
Rear seat to floor
12 ½ in. to 20 ¼ in.
31.8 cm to 51.4 cm
Back height
9 in. to 21 in.
22.9 cm to 53.3 cm
Armrest Height
8 in. to 14 in.
20.3 cm to 35.6 cm
Front frame angle
60°, 70°, 80°, 90°
Back angle
85° to 110°
Wheel camber
0°, 3°, 6°
Center of gravity
1 in. to 4 in.
2.5 cm to 10.2 cm
Overall width
20 ¾ in. min – 33 ½ in. max.
52.7 cm min – 85.1 cm max.
View & Download
Order a Motion Composites HELIO C2 Ultralight Folding Wheelchair C2WC05 today from MobilityParadise.com. Free shipping + free gifts on all of our Motion Composites Folding Wheelchairs. Buy today and get a discount, free shipping, and a free gift!
